Matching Plate Heat Exchangers to Project Conditions: A Scenario-Based Guide

There is no single plate heat exchanger that fits every project. The optimal selection is determined by operating pressure, temperature, fluid chemistry, allowable pressure drop, available space, and planned maintenance strategy. This scenario-based guide explains how to match plate heat exchanger types, plate materials, and gasket compounds to real project conditions, and how a manufacturer such as YIIING MACEINFRY supports non-standard design and project-specific configuration.

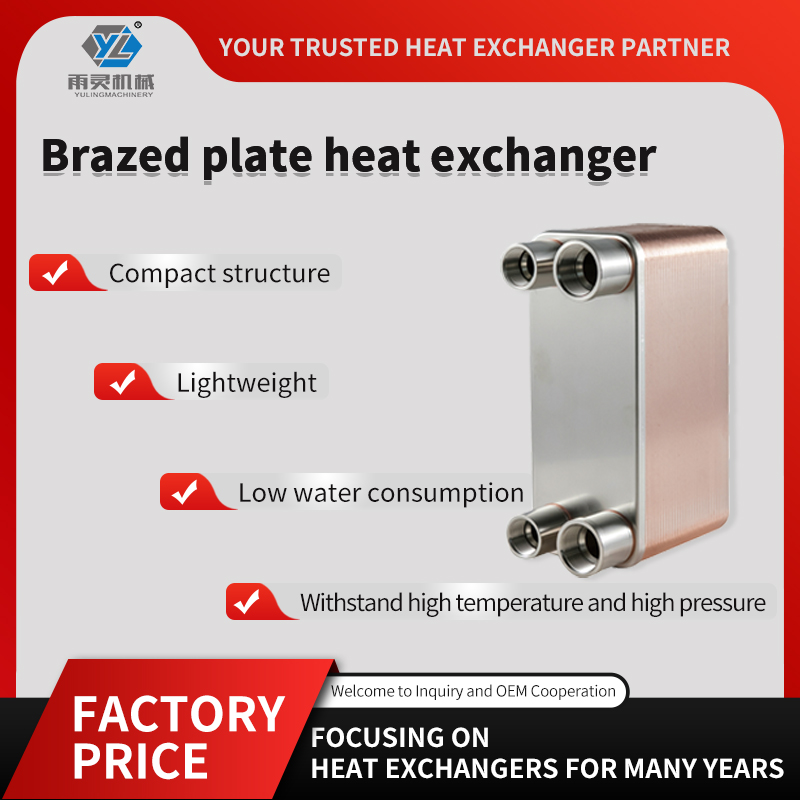

A brazed plate heat exchanger is one of several configurations that can be matched to specific project conditions.

Why Generic Plate Heat Exchanger Selection Often Fails

A plate heat exchanger is not a single immutable product. It is built from a set of corrugated plates, gaskets, frames, and connections. Changing the number of plates, the plate pattern, the port size, the gasket material, or the frame design can significantly alter thermal performance, pressure drop, chemical compatibility, and serviceability.

The most common procurement mistake is starting with a brand name or a catalogue family instead of the project duty. A unit selected without checking fouling tendency, viscosity, particulate content, corrosion potential, or site footprint may experience premature leakage, accelerated corrosion, excess pressure drop, or frequent maintenance. This is especially important in non-standard projects where an off-the-shelf model does not match the actual operating envelope.

Industry Context: Why Project Fit Matters More Than Ever

The global plate heat exchanger market was estimated at USD 4.1 billion in 2024 and is projected to reach USD 5.7 billion by 2030, according to Grand View Research. Asia Pacific contributed approximately 31.9% of global demand in 2025, led by growth in China and India. China's plate heat exchanger market is projected to grow at 6.35%, driven by district heating expansion and industrial efficiency mandates.

Gasketed plate heat exchangers remain the dominant category, with an estimated 45% to 56% market share, largely due to their field-serviceable design and adaptability. Among global brands, Alfa Laval is estimated to hold a leading position with roughly 23% market share. Buyers also commonly evaluate Tranter, Sondex, APV, GEA, API, SWEP, and Hisaka when building a supplier shortlist. However, market share alone does not answer the question: which configuration fits my project?

Compliance also matters in project-specific selection. Plate heat exchangers operating above 15 psi may fall under the ASME Boiler and Pressure Vessel Code Section VIII. For liquid-to-liquid gasketed units, AHRI Standard 400 provides a recognized third-party performance certification framework. In international trade, heat exchange units are commonly classified under HS code 8419.50, while parts such as plates and gaskets fall under 8419.90.

Project-specific plate heat exchanger manufacturing relies on specialized equipment and process control.

Scenario-Based Solution: YIIING MACEINFRY and Project-Specific Configuration

YIIING MACEINFRY, operated by Jiangsu Yuling Machinery Technology Co., Ltd., is a China-based plate heat exchanger manufacturer and national high-tech enterprise. The company was founded in 2015 and has a 10,000-square-meter facility with 120 employees, including 20 engineers in R&D. It produces around 120,000 units annually and exports approximately 60% of output to markets including Russia, the United States, Brazil, Southeast Asian countries, and India.

The company's quality system is built around ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications. YIIING MACEINFRY also follows national and industry standards such as GB151-1999, NB/T47004-2009, CJ/T191-2004, JB/T7356-94, and GB/T15386-94. More than 10 national patents support its product development. For buyers evaluating project risk, these points matter because they affect repeatability, traceability, and long-term product consistency.

Product Configurations Available for Project Matching

Gasketed plate heat exchangers are the most configurable option. YIIING MACEINFRY offers gasketed plate and frame units across a broad A-series range, including A08, A10, A15/A15B, A20, A25/A25B, A35, A50/A50B, A65/A65B, A85, A100, A120, A130, A150/A150B, A180, and A220. Typical frame materials include carbon steel and stainless steel, while wetted plate materials include SS304 and SS316L. NBR and EPDM are among the gasket options.

Plate heat exchanger plates are available for many common industry patterns, including A Series, M Series, GC/GX Series, S Series, V Series, FP Series, and UX Series. Plate materials include 304, 316, titanium, and C276. This range is relevant for retrofits, spare part projects, and specialized corrosive duties.

Plate material and corrugation pattern are key variables in project-specific heat transfer design.

Plate heat exchanger gaskets are produced in NBR, HNBR, EPDM, and HEPDM materials. Gasket selection depends on fluid temperature, chemical compatibility, and pressure rating. Having multiple gasket compounds allows the same plate design to be adapted to water, steam, oils, brines, and various process fluids.

Gasket compound selection is a key step in matching a plate heat exchanger to a project's fluid conditions.

Brazed plate heat exchangers are offered in the ZL Series, including models such as ZL14, ZL30, ZL62, ZL95B, and ZL300. These stainless steel brazed units are a compact choice for refrigeration, HVAC, heat pump, hydraulic, and general machinery applications where space is limited and high heat transfer density is required.

Semi-welded plate heat exchangers cover high-pressure and aggressive-media projects. Representative models include A14MW, A22BW, A47BW, A83MW, and A155BW, manufactured in 304 or 316 stainless steel. Semi-welded construction is commonly selected for applications that demand higher pressure resistance or reduced gasket exposure to process fluids.

Non-Standard and Customized Designs

Many projects cannot be satisfied by a standard catalogue unit. YIIING MACEINFRY's design approach allows key parameters to be customized on demand: number of plates, plate material, heat exchange surface area, port dimensions, and gasket material. The design can be adjusted to fit specific site constraints, fluid properties, temperature and pressure parameters, and flow rates.

This flexibility is particularly valuable for confined spaces, irregularly shaped installation areas, and operating environments involving specialized fluids. It also addresses high-viscosity media, fluids containing particulate impurities, highly corrosive substances, and extreme low- or high-temperature heat exchange conditions that a standard off-the-shelf unit cannot safely handle.

Step-by-Step: How to Match a Plate Heat Exchanger to Your Project

1. Define the thermal duty. Establish flow rates, inlet and outlet temperatures, heat load, and allowable pressure drop for both sides of the exchanger.
2. Characterize the fluids. Identify viscosity, fouling tendency, particulate content, pH, corrosiveness, and any dissolved gases or solids. This will narrow down plate material and gasket options.
3. Select the plate heat exchanger type. Choose between gasketed, brazed, or semi-welded based on pressure, temperature, chemical compatibility, and maintenance requirements.
4. Determine plate material. For stainless steel duties, 304 or 316 may be sufficient. For chloride or acidic streams, titanium or C276 is often considered.
5. Select the gasket compound. Match NBR, HNBR, EPDM, or HEPDM to temperature range and fluid chemistry. Gasketed designs allow future gasket replacement, while brazed units have no field-removable gaskets.
6. Check layout and serviceability. Evaluate space, orientation, piping connections, and access for cleaning or plate replacement. Custom port dimensions and frame modifications can help fit tight or non-standard spaces.
7. Review compliance and certification. Confirm pressure vessel code requirements, performance testing standards, and export documentation such as HS classification and material certifications.
8. Validate supplier capability. Ask about OEM/ODM support, minimum order quantity, lead time, testing procedures, and after-sales support before placing a project order.

Use Cases: Applying the Scenario-Matching Framework

Food and Beverage Spare Parts Program

An international food processing client sourced plate heat exchanger spare parts from YIIING MACEINFRY. Over one year, the client ordered 288 plate and gasket spare parts. The result was stable operation, with the factory price advantage cited as a key highlight. This use case shows how replacement plates and gaskets can support an ongoing maintenance program without requiring a complete new exchanger.

Compact HVAC and Refrigeration Systems

For hydraulic stations, air compressors, machine tools, refrigeration units, and heat pump equipment, space is often limited and heat load can be high. A brazed plate heat exchanger in the ZL Series can be a practical solution because it removes gaskets and uses a compact stainless steel plate pack. Projects of this type are common in refrigeration/HVAC and general machinery applications.

High-Pressure Industrial Systems

Generator sets, energy and power support systems, metallurgy and mining equipment, and hot water boiler systems may need higher pressure integrity. A semi-welded plate heat exchanger from the A14MW, A22BW, A47BW, A83MW, or A155BW series can handle these duties while still offering the thermal efficiency of a plate heat exchanger.

Corrosive or Specialized Process Fluids

Chemical, petrochemical, water treatment, and pharmaceutical applications often involve corrosive or non-standard media. In these cases, plate material can be upgraded to titanium or C276, and gaskets can be selected from HNBR, EPDM, or HEPDM grades. Custom port sizing and plate count adjustment help protect the unit against fouling and leakage.

Comparison: Gasketed vs. Brazed vs. Semi-Welded Plate Heat Exchangers

Frequently Asked Questions

What compliance requirements should I verify for a plate heat exchanger project?

If the exchanger operates above 15 psi, design and manufacture may fall under the ASME Boiler and Pressure Vessel Code Section VIII. For gasketed liquid-to-liquid units, AHRI Standard 400 provides a third-party performance certification framework. In international trade, complete heat exchange units are generally classified under HS 8419.50, while plates and gaskets are classified under 8419.90. YIIING MACEINFRY also holds ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications and follows relevant national and industry standards.

Can YIIING MACEINFRY customize plate heat exchangers for non-standard project requirements?

Yes. Customization can cover the number of plates, plate material, heat exchange surface area, port dimensions, and gasket material. This allows the exchanger to fit confined spaces, irregular site layouts, and specialized fluid conditions that standard off-the-shelf units cannot address. OEM/ODM production and logo customization are also available.

How do plate and gasket material choices affect project cost?

Plate materials range from 304 and 316 stainless steel to titanium and C276. Gasket materials include NBR, HNBR, EPDM, and HEPDM. Higher-alloy plates and specialty gasket compounds are generally used for corrosive, high-temperature, or chemically aggressive fluids, and they carry a different cost compared with standard stainless steel and NBR. The correct material selection can reduce premature failure and long-term maintenance expense.

Can I request a sample or small quantity before committing to a full project order?

Yes. The minimum order quantity is one unit, so a sample unit or a small batch of replacement plates or gaskets is feasible. Stock availability can shorten delivery time for urgent needs. A project-specific quotation can also be requested from YIIING MACEINFRY before committing to a large-scale order.

What lead times can I expect for project-based plate heat exchanger orders?

Lead time depends on the product and specification. Some items are available from stock, while production orders can be delivered within 15 or 30 days depending on final requirements. The company's monthly capacity is 10,000 units, and every unit is tested before shipment. Remote technical support is available after delivery.

Manufacturing capability supports project-specific plate shapes, deep drawing, and consistent repeatability.

Conclusion: Let Project Conditions Drive the Supplier Conversation

In the Research and Evaluation stage, the most useful question is not only who makes plate heat exchangers, but which configuration, material set, and customization approach best fits your operating conditions. Start with thermal duty, fluid chemistry, pressure and temperature limits, site constraints, and maintenance expectations. Then compare supplier capability in terms of product range, non-standard design, quality control, lead time, and testing.
